Heavy-Duty Scaffolding Couplers (Double, Swivel, and Putlog Types)

Our high-quality scaffolding couplers are engineered to provide maximum load-bearing connection stability in tube and clamp scaffolding systems. Manufactured under the trusted TFCO brand by Tianjin Friend Steel Group, these essential structural fittings include drop-forged and pressed steel right-angle (double), swivel, and putlog (single) couplers. Fully certified to EN74 and BS1139 European standards, TFCO couplers ensure the structural integrity of your scaffolding frameworks on demanding construction sites worldwide.

WhatsApp Chat

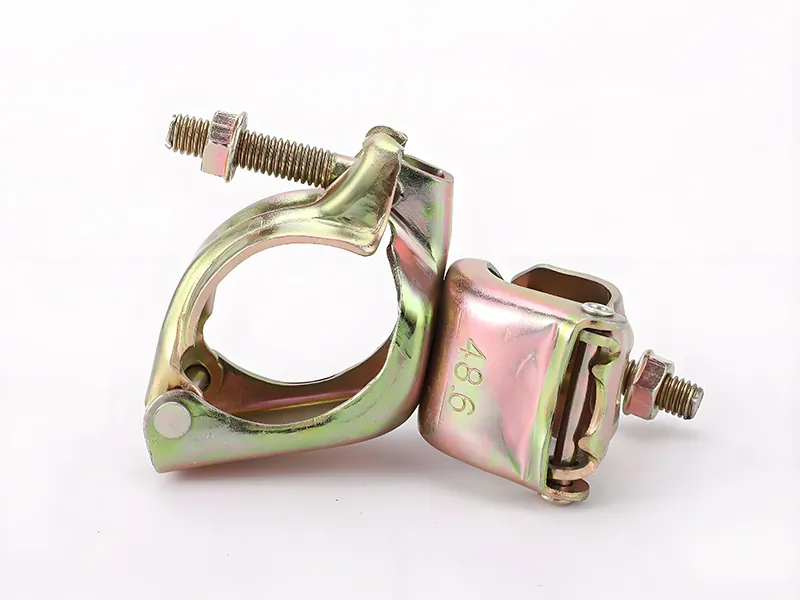

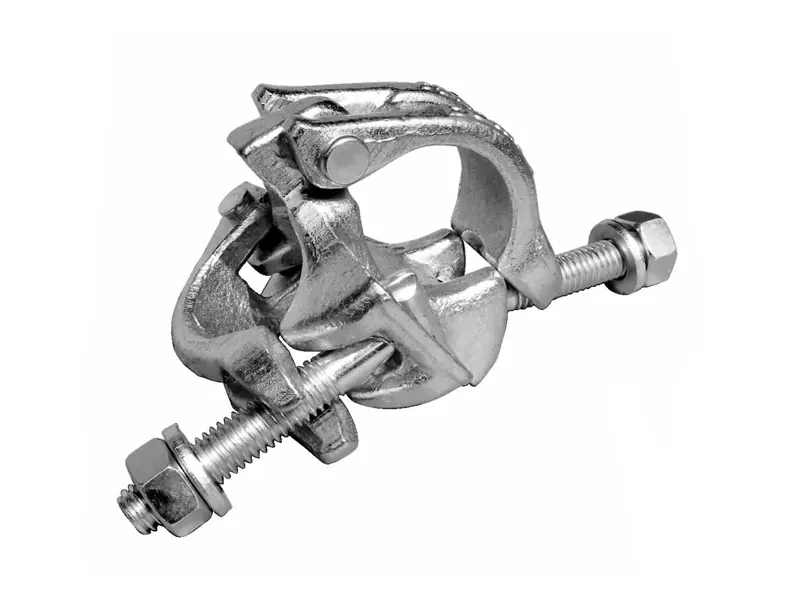

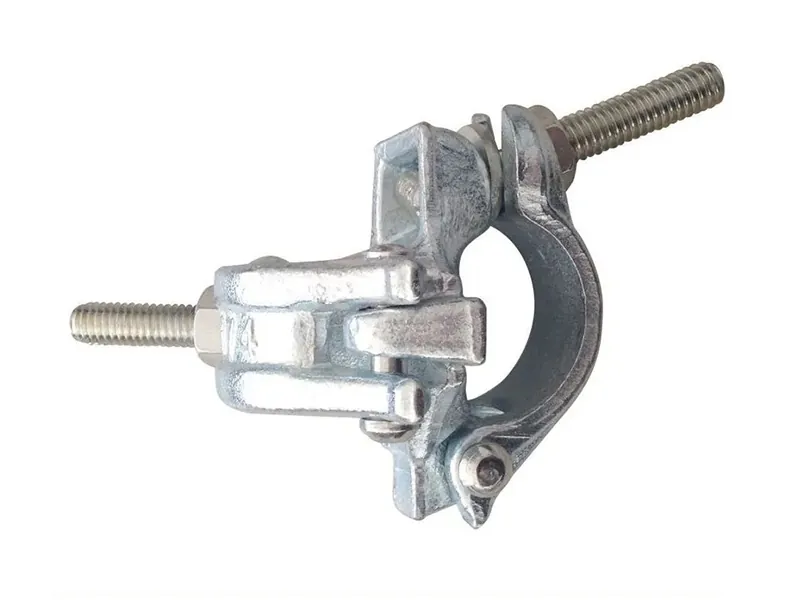

heavy duty scaffolding couplers (double, swivel, and putlog types)

Technical Specifications

Specification Data Details
Material Q235 Carbon Steel, Premium Drop-Forged Steel, Pressed Steel
Coupler Types Available Double Coupler (Fixed 90°), Swivel Coupler (360°), Putlog Coupler (Single), Sleeve Coupler
Standard Compliance EN 74 Class A & B, BS 1139 Standard
Applicable Tube Diameter 48.3 mm / 48.6 mm Outer Diameter
Manufacturing Process Drop Forged, Pressed Steel
Surface Treatment Electro-Galvanized (Zinc Plated), Hot-Dipped Galvanized (HDG), Self-Color
Unit Weight Double Coupler: 0.98 - 1.0 kg | Swivel Coupler: 1.12 - 1.15 kg | Putlog Coupler: 0.60 - 0.63 kg
Tightening Torque 54 Nm (Standard setting)
Thread & Nut Options T-Bolts and Collar Nuts (Size: 21mm or 22mm)

Key Advantages

Exceptional Load-Bearing Durability: Manufactured through a high-precision drop forging or heavy-duty pressing process using structural carbon steel, our couplers offer high yield strength and extreme resistance to mechanical deformation under structural loads.
Strict Standard Compliance: Fully tested and certified in accordance with EN74 (Class A/B) and BS1139 standards. These couplers maintain rigid slip resistance and structural torque values to guarantee compliance on strict commercial jobsites.
Superior Corrosion Protection: Available with premium electro-galvanized or hot-dipped galvanized finishes, our couplers resist oxidation, rust, and abrasion, extending their operational lifespan even in highly humid or coastal environments.
Universal Fit and Easy Tightening: Designed to fit standard 48.3mm or 48.6mm outer diameter scaffolding tubes. Equipped with heavy-duty T-bolts and nuts that allow for rapid, secure tightening with standard impact wrenches.

Product Applications

Tube and Clamp Scaffolding Systems: Essential for constructing independent tied scaffolds, birdcage scaffolds, and heavy-duty structural shoring configurations.
Bracing and Angle Enforcement: Swivel couplers allow for the precise erection of diagonal braces and irregular structural supports at any angle.
Platform Ledger and Transom Connections: Putlog couplers safely secure non-load-bearing ledgers, transoms, and timber/steel scaffold boards.
Temporary Structural Frameworks: Widely used in outdoor staging, temporary storage structures, and grandstands to lock structural piping.

Packaging & Delivery

Packaging: Neatly packed in heavy-duty woven bags (typically 25 or 30 pieces per bag) and securely stacked on steel-strapped wooden or steel pallets to prevent shifting during sea freight.
FOB Loading Port: Tianjin Port, China (ensuring streamlined global shipping and container optimization managed by Tianjin Friend Import and Export Co., Ltd.).
Quality Control: Each production batch is subjected to strict dimensional audits, thread and bolt inspections, slip resistance load tests, and zinc coating thickness measurements.

Frequently Asked Questions (FAQ)

Q: What is the structural difference between a double coupler and a putlog coupler?
A: A double (right-angle) coupler is a load-bearing connector designed to join two intersecting pipes at exactly 90 degrees. A putlog (single) coupler is non-load-bearing, designed specifically to locate and secure transoms or putlogs to structural ledgers.

A: We highly recommend our Hot-Dipped Galvanized (HDG) couplers for marine or high-humidity applications, as the thicker zinc coating provides superior rust protection compared to standard electro-galvanized finishes.

A: Yes. All TFCO scaffolding couplers are systematically tested and certified to comply with EN74 (Class A & B) and British Standard BS1139 requirements.

A: Yes, absolutely. As a prominent division of Tianjin Friend Steel Group, we specialize in consolidating various scaffolding components (including tubes, couplers, planks, and frame jacks) into single containers to minimize shipping costs.
