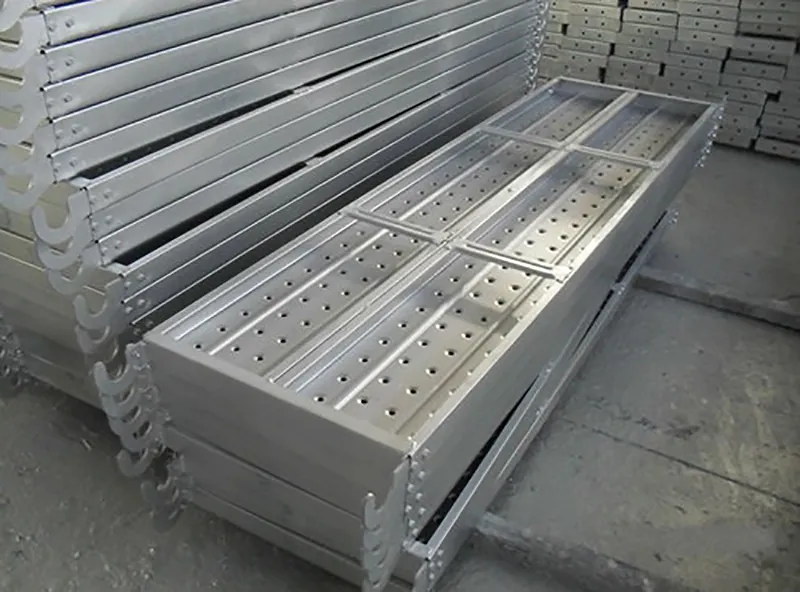

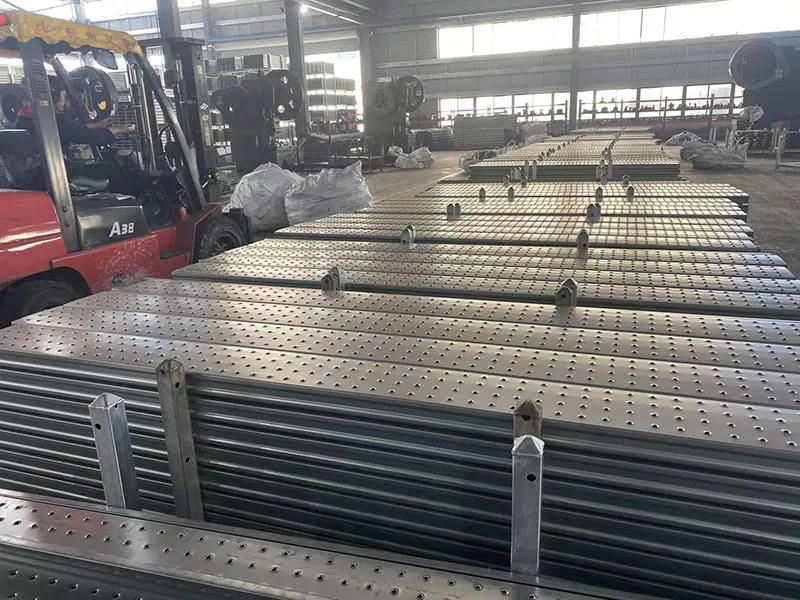

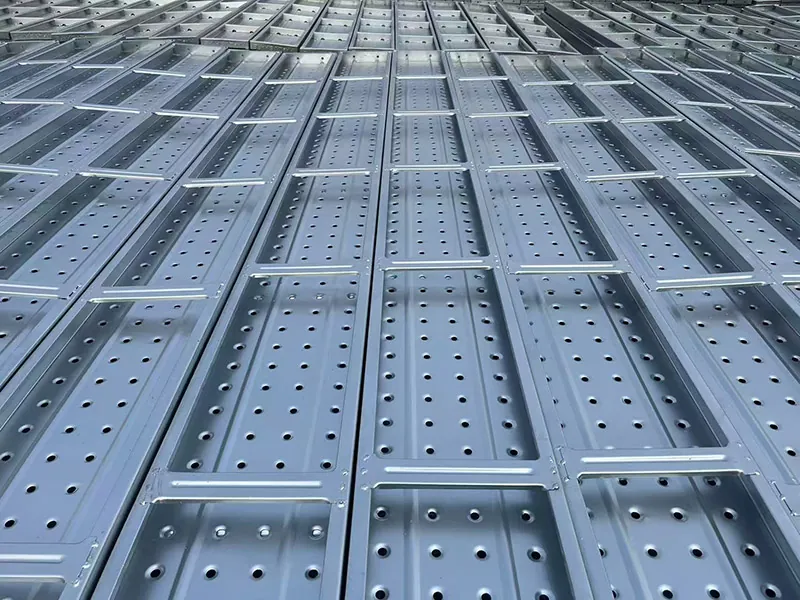

240mm Galvanized Steel Scaffolding Plank with Hooks
The 240mm Galvanized Steel Scaffolding Plank with Hooks (also known as a scaffold deck or catwalk) is a premium, heavy-duty walking platform engineered for modern construction safety. Designed to replace traditional wooden boards, this steel plank eliminates the risks of fire, rotting, and cracking, providing a reliable and durable working platform for scaffolders operating at dangerous heights.
Featuring a standard width of 240mm and robust welded hooks at both ends, this plank can be instantly and securely locked onto standard scaffolding tubes. The surface is meticulously punched with flanged holes to provide exceptional anti-slip performance and rapid water drainage. Manufactured from high-strength Q235 steel and finished with a highly protective galvanized coating, our steel planks deliver an extended service life for construction, shipbuilding, and industrial maintenance projects globally.
Technical Specifications
| Technical Category | Specification Details |
| Product Name | Steel Scaffolding Plank / Deck / Board with Hooks |
| Standard Width | 240mm |
| Standard Height | 45mm / 50mm |
| Wall Thickness | 1.2mm, 1.5mm, 1.8mm, 2.0mm |
| Available Lengths | 1.0m, 1.5m, 2.0m, 2.5m, 3.0m, 4.0m (Customizable) |
| Material Grade | High-Yield Q195, Q235 Carbon Steel |
| Hook Specification | Inner diameter 50mm (Designed for standard 48.3mm tubes) |
| Surface Design | Punched anti-slip holes with drainage design |
| Surface Treatment | Pre-galvanized / Hot-Dipped Galvanized (HDG) |
| Structural Support | Welded bottom stiffening ribs (Box profile design) |
Key Advantages
Product Applications
System Scaffolding: Seamlessly integrates with Ringlock, Cuplock, and tubular scaffolding systems as the primary secure working platform.
Shipbuilding & Offshore: Ideal for marine environments and ship repairs where fireproof and anti-corrosion materials are mandatory.
Petrochemical & Oil Refineries: Meets the strict non-combustible safety regulations required in chemical and oil & gas facilities.
General Building Construction: A safe, reusable walkway for masonry, facade painting, plastering, and high-rise maintenance.
Packaging & Delivery
Frequently Asked Questions (FAQ)
Q: What size scaffolding tube do the hooks fit?
A: The hooks on our 240mm steel planks are specifically designed with an inner diameter of approx. 50mm, ensuring a perfect, secure fit over universally standard 48.3mm (1.5″) outer diameter scaffolding tubes.
Q: Why should I upgrade from wooden scaffold boards to steel planks?
A: Steel planks provide a vastly superior Return on Investment (ROI). They do not rot, warp, or absorb water weight when it rains. More importantly, they are fireproof and provide a much higher, consistent load-bearing capacity, reducing liability and safety risks.
Q: Can you customize the length of the steel planks?
A: Yes. While standard lengths range from 1.0m to 4.0m, we can manufacture the planks to exact custom lengths based on the specific bay dimensions of your scaffolding system.
Q: Are the hooks welded securely to prevent detachment?
A: Absolutely. Our hooks are integrated using CO2 arc welding for deep penetration, ensuring the hooks can withstand immense shear force and will not detach from the main plank body under heavy loads.
