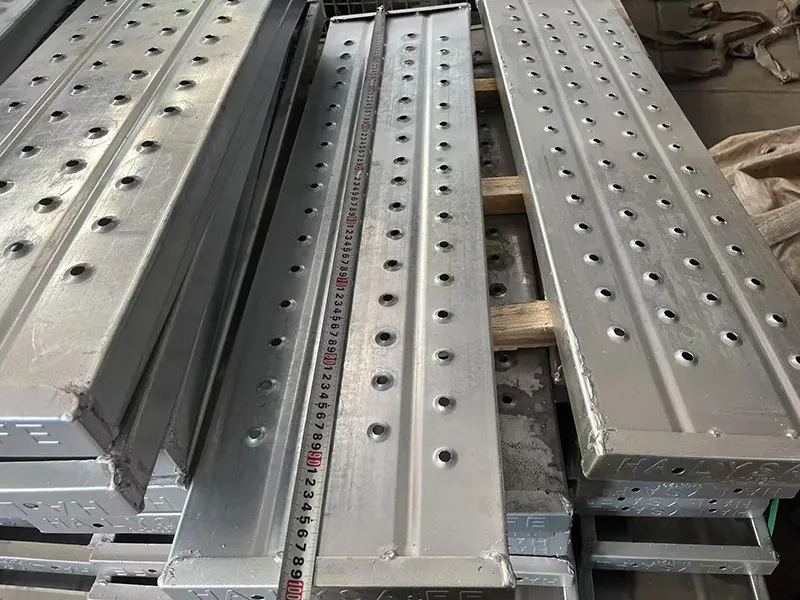

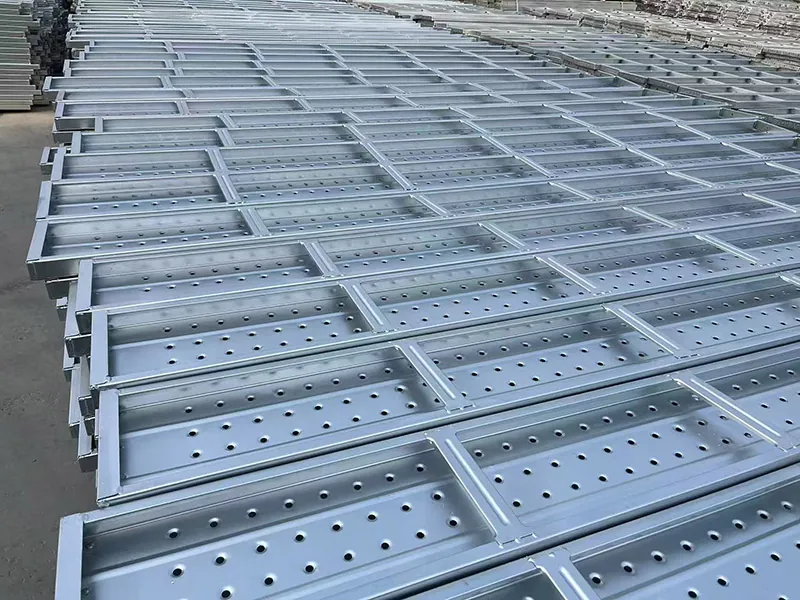

420mm Galvanized Steel Scaffolding Catwalk with Hooks (For Frame System)
The 420mm Galvanized Steel Scaffolding Catwalk with Hooks is a premium, extra-wide working platform specifically engineered for Frame Scaffolding Systems. Compared to standard narrow planks, this 420mm walkboard provides an expansive, secure standing area, allowing workers to maneuver safely and store essential tools or materials right at their feet during high-altitude operations.
Manufactured from high-strength carbon steel, this catwalk features heavy-duty welded hooks that snap instantly onto the horizontal tubes of Mason frames, Walk-through frames, and Ladder frames. The deck is engineered with an aggressive anti-slip punched hole surface and is heavily reinforced with bottom stiffening ribs to prevent sagging over long spans. Treated with a durable galvanized finish, this catwalk is fireproof, weather-resistant, and delivers outstanding ROI for scaffolding rental companies and contractors.
Technical Specifications
| Technical Category | Specification Details |
| Product Name | Steel Scaffolding Catwalk / Walkboard with Hooks |
| Standard Width | 420mm (Extra-Wide Platform) |
| Standard Height (Profile) | 45mm / 50mm |
| Wall Thickness | 1.2mm, 1.5mm, 1.8mm, 2.0mm |
| Standard Lengths | 1829mm (6ft), 2134mm (7ft), 3000mm (10ft), or Customized |
| Material Grade | High-Yield Q195, Q235 Carbon Steel |
| Hook Design | Welded hooks compatible with standard Frame System tubes |
| Surface Design | Convex punched holes for maximum anti-slip traction |
| Surface Treatment | Pre-galvanized / Hot-Dipped Galvanized (HDG) |
| Structural Support | Multiple internal bottom stiffening ribs (Stiffeners) |
Key Advantages
Product Applications
Frame Scaffolding Systems: The dedicated working platform for Walk-Through, Mason, and Ladder scaffolding frames.
Mobile Rolling Towers: Provides a wide, secure deck at the top of mobile aluminum or steel scaffold towers for indoor maintenance and ceiling work.
Masonry & Plastering: Offers the necessary width and load capacity for bricklayers to safely stage mortar, bricks, and tools alongside their working area.
Commercial Building Maintenance: Ideal for facade painting, window installation, and general building repairs.
Packaging & Delivery
Frequently Asked Questions (FAQ)
Q: What is the main benefit of a 420mm catwalk over standard 240mm planks?
A: A 420mm catwalk is nearly double the width of a standard plank. For Frame Systems, this means you can create a safe, OSHA-compliant working platform with fewer pieces to install, saving significant labor time. It also provides much more room for workers and their materials.
Q: Can you manufacture catwalks to match American standard frame spans?
A: Yes. We regularly manufacture catwalks with exact lengths of 6 feet (1829mm) and 7 feet (2134mm) to perfectly match standard American and international frame scaffolding cross-brace spans.
Q: Will the hooks fit securely on my existing scaffolding frames?
A: Yes, our welded hooks are designed with an optimal inner diameter to securely snap over the standard horizontal tubes of Mason and Walk-through frames, preventing accidental uplift.
Q: Are these catwalks fireproof?
A: Absolutely. Being made entirely of galvanized carbon steel, these catwalks are 100% non-combustible. They are the ideal, highly durable upgrade from traditional flammable wooden boards or aluminum-plywood decks.
