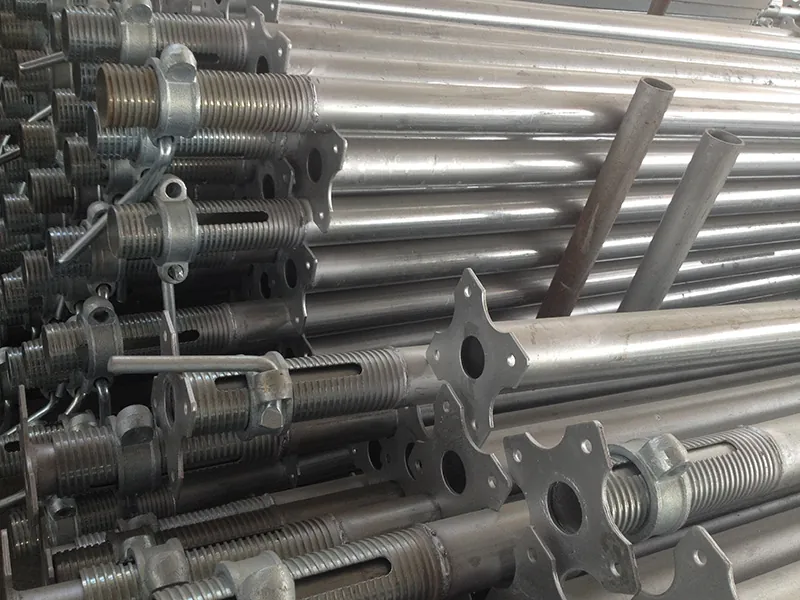

Scaffolding Acro Jack and Formwork Support System
The Scaffolding Acro Jack and Support System provides a comprehensive, highly efficient shoring solution for modern concrete formwork construction. Rather than just offering standalone steel props, this system integrates high-capacity Acro Jacks with essential stabilizing accessories—such as folding tripods and U-head (fork head) jacks—to create a freestanding, immensely stable load-bearing structure.
Engineered from premium Q235 and Q345 carbon steel, our Acro jack support systems are designed to safely bear the extreme weight of concrete slabs, bridging beams, and heavy architectural frameworks. With precision-machined threads for micro-height adjustments and premium anti-corrosion finishes (Hot-Dipped Galvanized or Powder Coated), this system guarantees rapid erection, maximum site safety, and a prolonged lifespan for scaffolding rental fleets and large-scale contractors.
Technical Specifications
| Technical Category | Specification Details |
| System Components | Adjustable Acro Jack, Folding Tripod, U-Head / Fork Head |
| Acro Jack Outer Tube | 48mm / 56mm / 60mm |
| Acro Jack Inner Tube | 40mm / 48mm |
| Wall Thickness | 1.8mm, 2.0mm, 2.5mm, 3.0mm (Heavy Duty) |
| Adjustable Height | 1.6m-3.0m, 2.0m-3.6m, 2.2m-4.0m, 3.0m-5.0m |
| Material Grade | High-Yield Q235, Q345 Carbon Steel |
| Micro-Adjustment | Precision threaded sleeve with heavy-duty cast nut |
| Tripod Specification | Collapsible, fit for Ø48mm-Ø60mm props, painted or galvanized |
| U-Head Dimension | Designed to securely hold H20 timber beams or steel girders |
| Surface Treatment | Hot-Dipped Galvanized, Powder Coated, Painted |
Key Advantages
Product Applications
Slab Formwork Support: The primary shoring system for pouring concrete floors in high-rise commercial and residential buildings.
Bridge & Infrastructure Shoring: Providing robust, high-load temporary support for heavy concrete beams and bridge decks.
Reshoring Operations: Distributing structural loads across multiple floors during continuous construction cycles.
Temporary Falsework: Reliable structural support for building alterations, structural repairs, and trench stabilization.

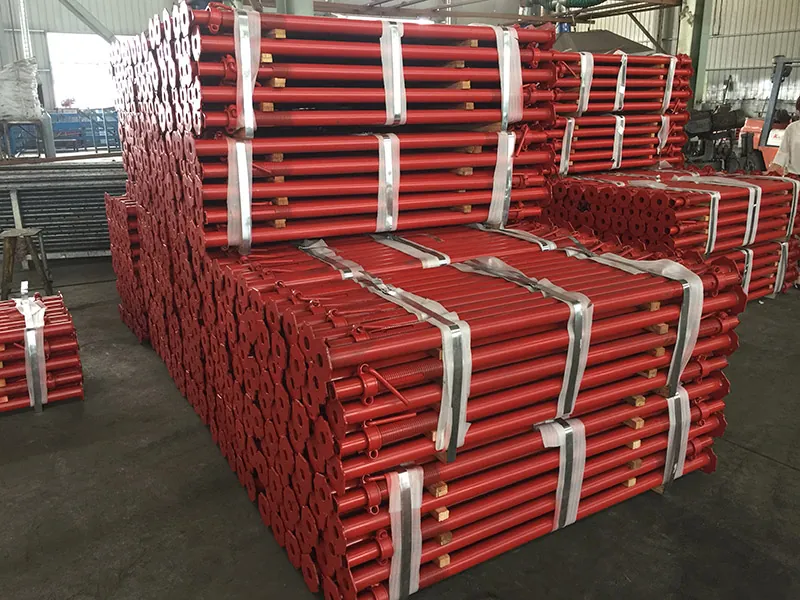

Packaging & Delivery
Frequently Asked Questions (FAQ)
Q: What exactly constitutes a complete Acro Jack Support System?
A: A complete freestanding shoring node consists of three parts: 1 Adjustable Acro Jack (for vertical support), 1 Folding Tripod (clamped to the base for freestanding stability), and 1 U-Head / Fork Head (inserted at the top to securely hold the horizontal timber or steel beams).
Q: Can the Acro Jacks be used independently without the tripods?
A: Yes. While tripods are highly recommended for initial erection stability and lateral support, the Acro Jacks can be used independently for tight spaces, trench strutting, or when braced by other framework structures.
Q: Do you provide load-bearing capacity charts for the system?
A: Absolutely. As safety is paramount, we provide comprehensive load charts based on the specific tube diameter, wall thickness, and extension height of the props you order.
Q: Which surface treatment do you recommend for scaffolding rental companies?
A: For rental fleets, we strongly recommend Hot-Dipped Galvanized finishes. The heavy zinc coating provides unparalleled resistance against rust, wet concrete adhesion, and mechanical impact, ensuring the longest possible ROI for your assets.
