Scaffolding Props and Supports for Construction

Scaffolding Props and Supports are indispensable load-bearing tools used across all sectors of the construction industry. Designed to provide immediate, reliable vertical support for concrete slabs, beams, and temporary formwork, these adjustable steel props ensure structural stability and worker safety on busy job sites.

To meet the diverse architectural requirements and operational habits of global contractors, our factory manufactures all major regional designs, including Middle East Type, Spanish Type, and Italian Type props. Forged from high-yield Q235 and Q345 carbon steel, and available in multiple finishes (Painted, Powder Coated, and Galvanized), our construction supports offer extreme durability, rapid adjustability, and a superior strength-to-weight ratio for both residential and commercial building projects.

WhatsApp Chat
Steel Scaffolding Props for Construction Support

Technical Specifications

Technical Category Specification Details
Product Name Scaffolding Props and Supports for Construction
Regional Designs Middle East Type, Spanish Type, Italian Type
Outer Tube (OD) 48mm, 56mm, 60mm (Depending on Regional Type)
Inner Tube (OD) 40mm, 48mm (Depending on Regional Type)
Wall Thickness 1.5mm, 1.8mm, 2.0mm, 2.5mm, 3.0mm
Adjustable Height 1.6m-3.0m, 2.0m-3.6m, 2.2m-4.0m, 3.0m-5.0m
Material Grade High-Yield Q235, Q345 Carbon Steel
Base / Top Plate Flat Square, Flower Plate, U-Head Plate (Thickness: 4mm - 8mm)
Surface Treatment Dip Painted, Powder Coated, Electro / Hot-Dipped Galvanized
Locking Pin G-Pin, Line Pin, Chain Pin, or specific Spanish/Italian lock pins

Key Advantages

Global Design Compatibility: Whether your workers are accustomed to the thread style of the Italian Type, the specific pin lock of the Spanish Type, or the heavy-duty diameter of the Middle East Type (48/60mm), we manufacture exact specifications that fit seamlessly into your local construction habits.
High-Strength Structural Integrity: Built with premium Q235 and Q345 steel, our props are engineered to resist buckling under massive concrete slab weights. The fully melted, zero-air-hole welding process ensures the base plates and threaded sleeves never detach under pressure.
Rapid & Safe Adjustment: The exposed thread and cast-iron nut mechanism allows workers to make millimeter-precise height adjustments in seconds, significantly speeding up the erection and dismantling process on construction sites.
Tailored Anti-Corrosion Options: We offer cost-effective painted supports for dry climates, highly durable powder-coated finishes for rough handling, and hot-dipped galvanized props for maximum rust prevention in wet, coastal, or humid construction environments.

Product Applications

Residential Building Construction: Temporary support for ceiling slabs, lintels, and walls during home renovations or new builds.

Commercial Concrete Formwork: Heavy-duty shoring for pouring thick concrete floors and bridging beams in high-rise constructions.
Reshoring Operations: Distributing heavy structural loads safely to lower floors during sequential concrete pouring.
Structural Alterations: Providing critical structural stability when removing load-bearing walls or repairing foundations.

Packaging & Delivery

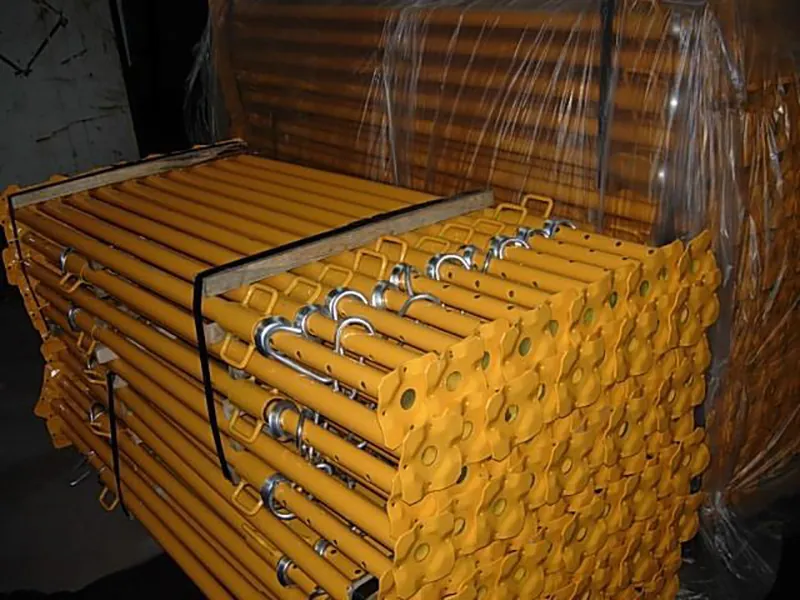

Safe & High-Density Packaging: Construction props are tightly bundled with heavy-duty steel strips (typically 50 pieces per bundle). We can add wooden or steel pallets to enable rapid loading and unloading via forklift at your construction site.
Container Space Optimization: Our logistics team carefully calculates the weight and volume to maximize the payload within 20ft shipping containers, ensuring the lowest possible freight cost per prop.
Fast Export Dispatch: Manufactured in our Tianjin facility, we are located just kilometers from Xingang Port, allowing for rapid vessel loading and prompt delivery schedules for urgent construction projects worldwide.

Frequently Asked Questions (FAQ)

Q: What is the main difference between Spanish, Italian, and Middle East type props?
A:Spanish Type: Typically uses 40mm (inner) and 48mm (outer) tubes with a specific pin and a unique threaded sleeve design.
Italian Type: Normally uses 48mm (inner) and 56mm (outer) tubes with a distinctive fine thread and nut shape.
Middle East Type: Designed for heavier loads, usually utilizing 48mm (inner) and 60mm (outer) tubes, known for their rugged durability in massive commercial projects.

A: If budget is the primary concern and the climate is dry, Painted props are sufficient. For scaffolding rental companies or contractors working in wet/coastal regions, Hot-Dipped Galvanized is highly recommended due to its decades-long rust resistance.

A: Yes. As a direct manufacturer, while our standard heights range from 1.6m to 5.0m, we can produce custom tube lengths to perfectly match the specific ceiling heights of your construction projects.

A: Every batch undergoes rigorous quality control, including welding line inspections, thread smoothness checks, and vertical load-bearing tests, ensuring compliance with international construction safety standards.
