Heavy-Duty Galvanized Ringlock Scaffold System (High-Load Shoring)

The Heavy-Duty Galvanized Ringlock Scaffold System is engineered specifically for major infrastructure projects, bridge construction, and thick concrete slab formwork where extreme load-bearing capacity is mandatory. Unlike standard facade scaffolding, this heavy-duty configuration utilizes high-yield structural steel and reinforced wall thicknesses to provide unyielding vertical support and lateral stability.

Manufactured using Q345 (S355) high-tensile steel for the vertical standards, the system effectively resists buckling under immense compressive forces. Fully protected by a Hot-Dipped Galvanized (HDG) finish, this heavy-duty scaffolding withstands the abrasive and corrosive environments of heavy concrete pours, offshore marine sites, and industrial plants. It delivers the ultimate combination of structural safety, rapid modular erection, and long-term durability.

WhatsApp Chat
heavy duty galvanized ringlock scaffold system (high load shoring)

Technical Specifications

Technical Category Specification Details
Product System Heavy-Duty Ringlock / Shoring Support Scaffold
Vertical Standard Material High-Yield Q345 / S355 Carbon Steel
Horizontal Ledger Material Q235 / Q345 Carbon Steel
Tube Outer Diameter (OD) Standard 48.3mm / Heavy-Duty Shoring 60.3mm (Optional)
Tube Wall Thickness 3.2mm, 4.0mm (Heavy-Duty specification)
Node Connection 8-hole Rosette (Punched at 500mm intervals)
Surface Treatment Hot-Dipped Galvanized (HDG) (Zinc coating > 60μm)
Testing & Certification Load Capacity Tested, EN 12810, AS/NZS 1576 Compliant
Main Components Standards, Ledgers, Diagonal Braces, Base Collars, Heavy Jack Bases

Key Advantages

Extreme Load-Bearing Capacity: By combining high-yield Q345 steel with thicker wall options (4.0mm) or larger outer diameters (60.3mm), our heavy-duty standards can safely support massive vertical loads. This makes it the perfect falsework system for pouring thick concrete bridge decks and commercial slabs.
Rigid Anti-Buckling Design: The 8-way rosette allows for multiple diagonal braces to be connected at a single node. This creates a highly rigid, truss-like spatial structure that entirely eliminates lateral swaying and prevents buckling under extreme weight.
Heavy-Duty Corrosion Defense: Heavy concrete shoring is often exposed to wet concrete, chemical curing agents, and harsh weather. Our Hot-Dipped Galvanization (HDG) process ensures a thick, metallurgical zinc bond that prevents rust and significantly extends the system’s safe working lifespan.
Fast & Safe Erection: Despite its heavy-duty rating, the system retains the simple, hammer-only wedge pin locking mechanism. This allows contractors to erect massive shoring towers in a fraction of the time required by traditional tube-and-clamp systems, drastically reducing labor costs.

Product Applications

Bridge & Viaduct Construction: Providing robust, freestanding shoring towers to support heavy concrete bridge girders and decks during curing.
Heavy Commercial Formwork: The primary support system for high-rise building slabs, underground parking structures, and large-span roofs.
Energy & Power Plants: Safe, high-capacity staging for the construction and maintenance of power generation facilities, cooling towers, and boiler rooms.
Offshore & Shipyards: Reliable structural support in highly corrosive marine environments where heavy-duty HDG steel is strictly required.

Packaging & Delivery

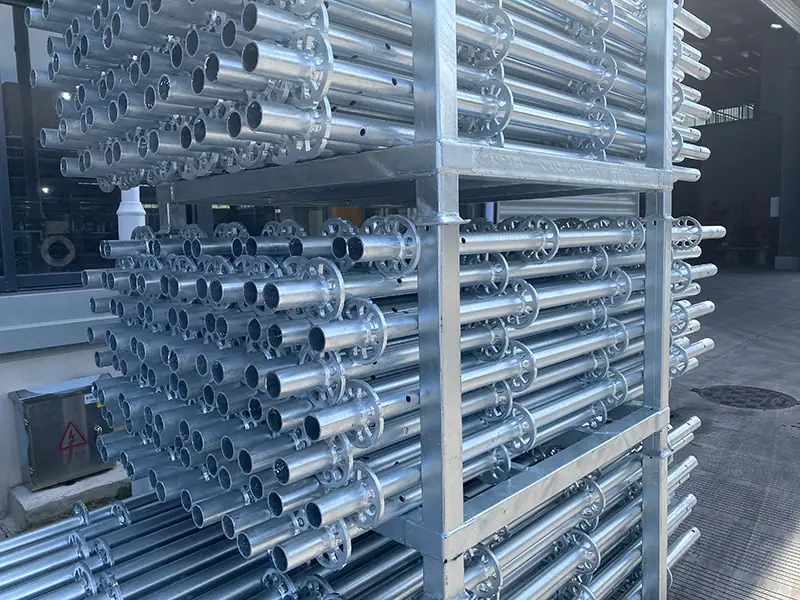

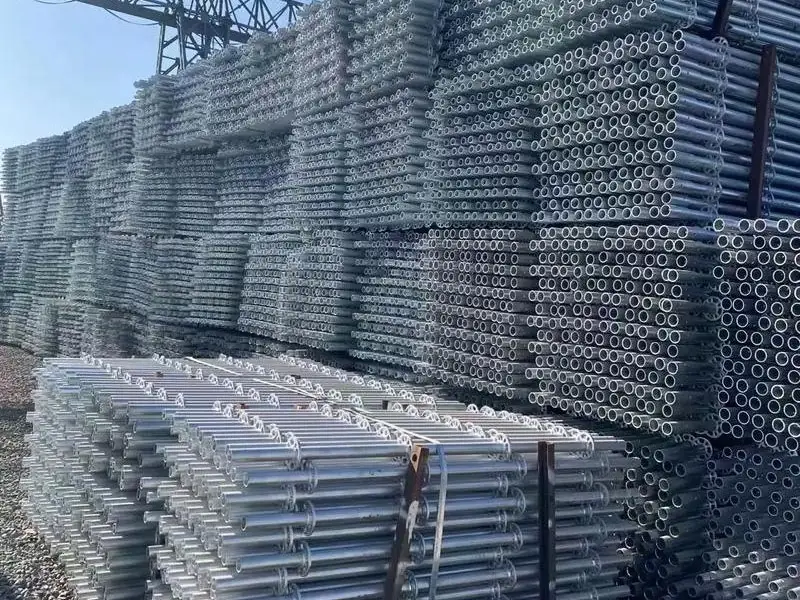

Reinforced Steel Rack Packing: Because heavy-duty Ringlock components are significantly heavier, they are packed exclusively in reinforced steel pallets/racks. This ensures structural integrity during heavy mechanical lifting and prevents transit damage.
Weight-Optimized Container Loading: Heavy-duty scaffolding quickly reaches the weight limits of international shipping. Our logistics team utilizes specialized loading software to mathematically optimize the mix of components in a 20ft shipping container, ensuring you maximize payload without incurring port overweight fines.
Reliable Global Export: Dispatched from our ISO-certified manufacturing hub in Tianjin, China (near Xingang Port), we provide fast vessel loading, complete Mill Test Certificates (MTC), and seamless global delivery.

Frequently Asked Questions (FAQ)

Q: What makes this Ringlock system “Heavy-Duty” compared to standard modular scaffolding?
A: A heavy-duty rating is achieved through three factors:
· The use of Q345 (S355) high-yield steel instead of Q235.
· A thicker wall profile (such as 4.0mm).
· For extreme shoring, upgrading the standard 48.3mm Outer Diameter to a larger 60.3mm Outer Diameter for the vertical standards, which exponentially increases compressive load capacity.

A: Yes, it is specifically designed for this purpose. When paired with our heavy-duty jack bases and U-heads (fork heads), the system provides an incredibly stable, high-capacity shoring solution for pouring thick concrete slabs.

A: Absolutely. We understand that structural engineers require exact data before approving a shoring system. We provide comprehensive load-bearing capacity charts and third-party test reports for our heavy-duty Ringlock configurations.

A: No, the wedge pins are captivated (riveted) within the ledger heads. This prevents them from being lost or dropping from heights during the erection of heavy towers, enhancing both safety and inventory management.
