Premium Galvanized Ringlock Scaffolding System

The Ringlock Scaffolding System (often referred to as all-around or modular scaffolding) represents the most advanced, versatile, and high-load-bearing temporary structure solution in the global construction industry. Designed for maximum safety and rapid assembly, our Premium Galvanized Ringlock Scaffold utilizes a unique rosette node connection that allows up to eight independent components to be securely locked into a single joint using just a hammer.

To meet the rigorous safety requirements of international contractors, our Ringlock vertical standards are manufactured exclusively from high-yield Q345 (S355) carbon steel, providing exceptional vertical load capacity. Every single component—from standards and ledgers to diagonal braces—is heavily treated with a Hot-Dipped Galvanized (HDG) finish, ensuring maximum rust resistance and decades of maintenance-free service life in harsh construction or offshore environments.

WhatsApp Chat
premium galvanized ringlock scaffolding system

Technical Specifications

Technical Category Specification Details
Product System Ringlock / Modular Scaffolding System
Material Grade (Standard/Vertical) High-Yield Q345 / S355 Carbon Steel
Material Grade (Ledger/Horizontal) Q235 / S235 Carbon Steel
Tube Outer Diameter (OD) Standard Duty: 48.3mm (Heavy Duty 60.3mm available)
Tube Wall Thickness 3.2mm (Standard) / 4.0mm (Heavy Duty)
Rosette Spacing Punched every 500mm along the standard
Node Connection 8-hole Rosette (4 small holes for ledgers, 4 large for braces)
Surface Treatment Hot-Dipped Galvanized (HDG) (Zinc coating > 60μm)
Main Components Standards, Ledgers, Diagonal Braces, Base Collars, Steel Planks, Jack Bases
Standard Compliance EN 12810, EN 12811, AS/NZS 1576, ANSI/SSFI

Key Advantages

Unmatched Load-Bearing Capacity: By utilizing high-tensile Q345 (S355) steel for the vertical standards rather than standard Q235, our Ringlock system offers vastly superior vertical load resistance. This allows for taller scaffold towers and heavier concrete shoring operations with fewer components.
Rapid & Hammer-Only Assembly: The genius of the Ringlock system lies in its wedge pin locking mechanism. A scaffold erector only needs a hammer to firmly drive the wedge pin into the rosette, eliminating the need for loose nuts, bolts, or wrenches. This cuts erection and dismantling time by up to 50% compared to traditional tube and clamp systems.
Extreme Flexibility (8-Way Rosette): Each rosette features 8 holes, allowing ledgers and diagonal braces to be attached at various angles. This makes it incredibly easy to scaffold around complex architectural shapes, circular tanks, and irregular building facades.
Decades of Corrosion Resistance: The entire system is Hot-Dipped Galvanized (HDG) inside and out. The heavy zinc coating prevents rust, meaning scaffolding rental companies will see a much higher Return on Investment (ROI) over a 20+ year lifespan.

Product Applications

Heavy-Duty Formwork & Shoring: Supporting massive concrete slabs and beams in bridge, highway, and high-rise commercial construction.
Industrial & Offshore Maintenance: Highly preferred in oil refineries, chemical plants, and shipyards due to its fireproof nature and extreme HDG anti-corrosion properties.
Complex Architectural Facades: The multi-directional rosette design easily adapts to curved buildings, historical monument restorations, and irregular structures.
Event Staging & Grandstands: Providing rigid, stable, and quick-to-assemble frameworks for outdoor concert stages and public seating areas.

Packaging & Delivery

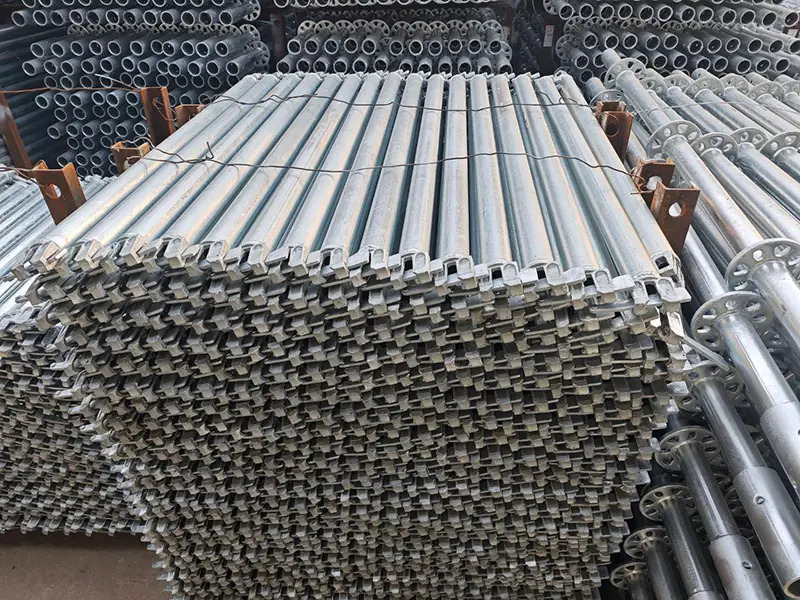

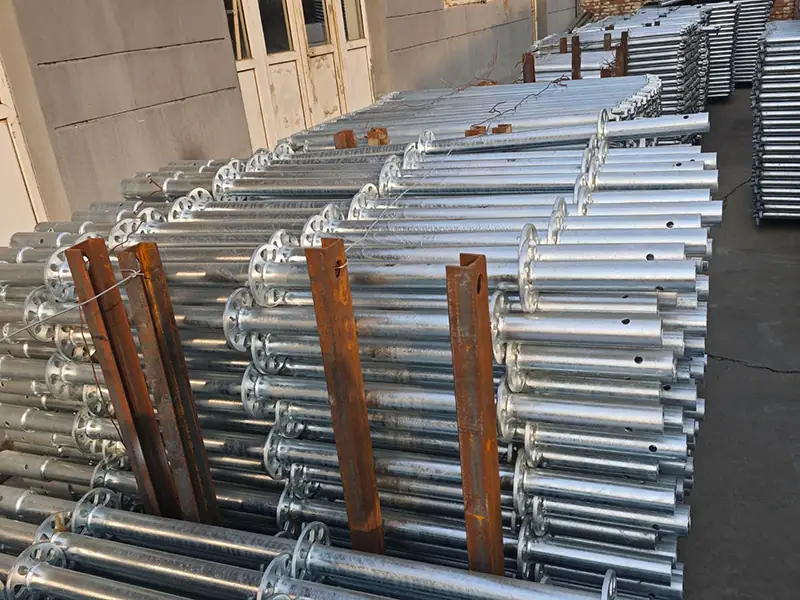

Professional Steel Rack Packaging: Unlike standard loose pipes, Ringlock components are neatly stacked into dedicated square steel racks (steel pallets). This prevents bending of the rosette plates, ensures rapid forklift loading/unloading, and saves massive warehouse storage space.
Container Freight Optimization: Our logistics team expertly configures the mix of standards, ledgers, and accessories to maximize the weight and volume payload of a 20ft shipping container, dramatically reducing your ocean freight cost per unit.
Global Export Readiness: Manufactured in our ISO-certified facility, every container is dispatched with full traceability, including Mill Test Certificates (MTC) verifying the Q345/Q235 material grades and galvanization thickness.

Frequently Asked Questions (FAQ)

Q: Why do the Vertical Standards use Q345 steel while Ledgers use Q235?
A: Vertical standards bear the downward compressive load of the entire scaffold tower, which requires the high yield strength of Q345 (S355) steel to prevent buckling. Ledgers primarily provide horizontal connection and guardrails, where Q235 steel is structurally sufficient and helps keep the overall system highly cost-effective.

A: Yes. Our Ringlock system is manufactured with exact international dimensional tolerances. The 48.3mm tube size and rosette pin geometries are compatible with most standard modular all-around scaffolding systems (like the Layher system).

A: The wedge pins on our ledgers and diagonal braces are pre-assembled and permanently captivated through a rivet design. They slide vertically to lock into the rosette but cannot be fully removed from the ledger head, eliminating the common problem of lost small parts.

A: Absolutely. We fully support structural testing by international agencies like SGS, BV, or TUV. We provide detailed load-bearing capacity charts and EN12810 compliance certificates to satisfy your local safety inspectors.
