Introduction
A safe and stable scaffolding system relies on more than strong frames and tubes. The foundation components also play an essential role in supporting the entire structure. During installation, uneven ground, different working heights, and changing site conditions can affect scaffold stability.
Choosing the right jack base is an important decision for contractors, distributors, and construction professionals. A proper understanding of its structure, specifications, and key selection factors can help improve safety, installation efficiency, and overall scaffold performance.
This guide explains how to select the most suitable scaffolding base jack for different construction applications.
What Is a Scaffolding Base Jack?
A scaffolding base jack is an adjustable support component installed at the bottom of a scaffolding structure. It connects the vertical scaffold standard to the ground and provides a stable foundation for the entire scaffold system.
Unlike fixed support components, a base jack allows workers to adjust scaffold height during installation. This function is especially useful when the construction surface is uneven or when the working platform needs to reach a specific height.
Main Components of a Scaffolding Base Jack
A typical scaffolding jack base consists of three main components:
Screw Rod
The screw rod is the core load-bearing part of a scaffolding base jack. It supports the vertical load from the scaffold and transfers the weight safely to the ground through the threaded connection.
Adjustable Nut and Thread System
The adjustable nut controls the working height of the base jack. Workers can rotate the nut to raise or lower the support point until the scaffold reaches the required level.
A well-designed thread system allows smooth adjustment and secure locking after installation. It also helps reduce thread wear during repeated use, which is important for scaffolding equipment that needs to be installed and reused many times.
Base Plate
The base plate is the bottom support component that contacts the ground. It increases the contact area and helps distribute the scaffold load more evenly.
Most base plates are made from square steel plates. Common sizes include 120 × 120 mm and 150 × 150 mm. A larger plate area can provide better support when ground conditions require improved load distribution.

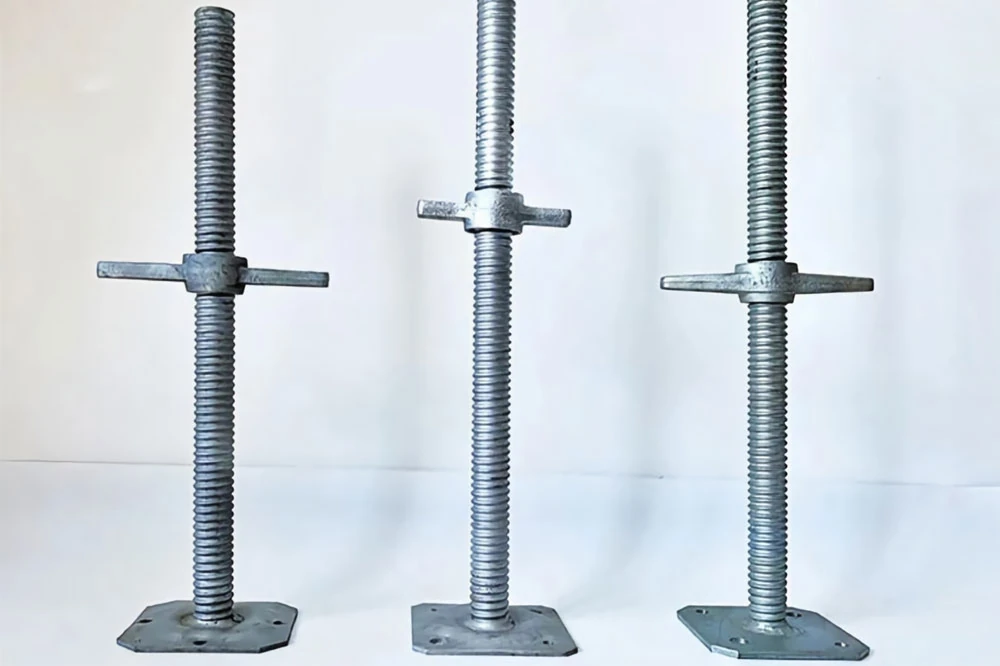

Solid Screw Jack vs Hollow Screw Jack: Which One Should You Choose?
When selecting a scaffolding base jack, buyers often need to choose between solid and hollow screw jack designs. Both types are widely used in scaffolding applications. However, their structures, weight, and performance characteristics are different.
The right choice depends on project requirements, including load conditions, transportation needs, installation efficiency, and working environment.
| Feature | Solid Screw Jack | Hollow Screw Jack |
| Structure | Solid steel rod design | Hollow steel tube design |
| Screw Diameter | Commonly 30–38 mm | Commonly 34–48 mm |
| Weight | Approx. 5–8 kg | Approx. 3.5–5 kg |
| Rigidity | Higher rigidity due to solid structure | Lower weight with sufficient support performance |
| Installation | Requires more handling effort due to higher weight | Faster installation and easier operation |
In addition to jack type, buyers should also check key specifications such as screw diameter, material grade, adjustment range, and compatibility with the scaffolding structure.
Key Factors to Consider When Choosing a Scaffolding Jack Base
Choosing the right scaffolding jack base is essential for building a safe and stable scaffolding structure. The selected base jack should match the project requirements, including load conditions, scaffold height, ground environment, and expected service life.
Load Capacity and Structural Strength
Load capacity is the first factor to consider when selecting a scaffolding jack base. The base jack must safely support the weight of the scaffold structure, workers, and construction materials.
The required strength depends on several factors, including:
- Scaffold height
- Working load
- Type of scaffolding structure
- Ground conditions at the construction site
A suitable jack base should provide enough strength to maintain stability under the expected working conditions.
Adjustment Range and Installation Flexibility
Construction sites rarely have completely level ground. A suitable scaffolding jack base should provide an adequate adjustment range to correct height differences and keep the scaffold platform level.
Before purchasing, buyers should confirm the required adjustment height based on the scaffold design and project conditions.
Material and Surface Protection
Material quality directly affects the strength, durability, and service life of a jack base. Carbon steel is widely used because it offers reliable mechanical performance while maintaining cost efficiency.
Common material options include:
| Material | Features | Typical Application |
| Q235 Carbon Steel | Good strength and economical performance | Standard scaffolding projects |
| Q355 Carbon Steel | Higher strength and better load resistance | Heavy-duty applications |
Since scaffolding equipment is often exposed to outdoor environments, surface protection is also an important consideration.
Hot-dip galvanizing helps reduce corrosion caused by moisture and improves the service life of steel components. For projects in humid or outdoor conditions, galvanized jack bases can provide better long-term performance.
Why Choose Friend Steel Pipe as Your Scaffolding Jack Base Supplier?
Selecting a reliable scaffolding jack base supplier is important for maintaining stable product quality and ensuring long-term project performance.
Specifications for Different Applications
Friend Steel Pipe provides adjustable base jack solutions for different scaffolding requirements. The products are available in various sizes, materials, and surface treatments to meet different construction conditions.
| Specification | Data Details |
| Product Category | Scaffolding Leveling Base Jack / Spindle Jack |
| Spindle Type | Solid Steel Bar / Hollow Structural Tube |
| Spindle Diameter | 30 mm, 32 mm, 34 mm, 38 mm, 48 mm (Compatible with OD 48.3mm Tubes) |
| Spindle Lengths | 450 mm, 600 mm, 750 mm, 900 mm (Customer-specified lengths available) |
| Base Plate Size | 150 mm x 150 mm x 5 mm / 6 mm (or 120 mm x 120 mm x 5 mm) |
| Steel Grade | Q235 / Q355 Carbon Steel |
| Thread Manufacturing | Cold-Rolled Acme / Trapezoidal Threading |
| Surface Treatments | Hot-Dip Galvanized (HDG), Electro-Galvanized, Painted / Primer Coated |
| Adjustment Nut | Ductile Cast Iron Wing Nut / Collar Nut |
| Testing Standards | BS 1139, EN 74, ANSI A10.8 Compliance |
Reliable Manufacturing Quality and Product Performance
A dependable screw jack manufacturer should focus on the details that influence daily use. Friend Steel Pipe pays close attention to thread accuracy, structural strength, and surface protection to ensure stable performance in construction applications.
Key advantages include:
- Smooth thread adjustment: Rolled threads provide smoother operation and reduce wear during repeated use.
- Strong corrosion resistance: Hot-dip galvanized treatment protects steel components from rust, especially in outdoor working environments.
- Consistent product quality: Professional manufacturing processes support stable production and customized solutions for different customer requirements.
Improvement of Project Efficiency
Choosing a reliable scaffolding jack base can help contractors and distributors improve project efficiency while reducing long-term costs.
The adjustable screw design allows faster leveling compared with fixed support methods. This helps reduce installation and adjustment time.
Durable threads and strong steel construction can also lower replacement and maintenance costs. Meanwhile, lightweight hollow jacks make transportation and handling easier, especially for large construction projects.
Project Case: Improving Scaffolding Stability on Uneven Ground
A commercial complex construction project required a stable scaffolding solution for exterior curtain wall installation. The contractor needed to build a three-story ringlock scaffolding structure on a backfilled ground surface.
However, the construction site had uneven terrain, with a maximum height difference of 15 cm. Traditional methods, such as using wooden wedges or bricks to adjust scaffold height, created several problems.
Customer Challenges
The uneven ground created several difficulties during scaffolding installation:
- Uneven load distribution between scaffold standards increased safety risks.
- Manual leveling required more time and affected the construction schedule.
- An uneven working platform could reduce the accuracy of curtain wall installation.
- Fixed support methods could not adapt to changing ground conditions.
Solution
The contractor installed adjustable scaffolding base jacks at the bottom of each scaffold standard. This allowed workers to adjust the height of each support point according to the actual ground conditions.
For this project, solid screw jacks with a 38 mm stem diameter and a 600 mm adjustment range were selected to meet the required load capacity.
Workers first placed timber planks on the ground to create a stable support surface. Then, they installed the jack bases and adjusted each scaffold standard by rotating the adjustment nut.
With the threaded adjustment mechanism, workers could fine-tune scaffold height during installation. A level was used to check each standard, ensuring proper vertical alignment and a level working platform.
Project Results
After using adjustable jack bases, the project achieved significant improvements:
- Scaffolding installation time was reduced by approximately 30%.
- Working platform levelness reached within ±2 mm/m, meeting curtain wall installation requirements.
- Safety risks caused by uneven ground were effectively reduced.
- The reusable jack bases helped lower equipment costs for future projects.
This case demonstrates how adjustable scaffolding base jacks can improve installation efficiency and provide reliable support for construction projects with uneven ground conditions.
FAQ
Q1: What is a scaffolding base jack used for?
A scaffolding base jack provides adjustable support at the bottom of a scaffolding system. It compensates for uneven ground conditions and helps ensure that each scaffold leg is properly supported.
Q2: How do you adjust the height of a scaffolding base jack?
Rotate the adjustment nut to raise or lower the screw rod. Adjust the height according to the ground conditions and ensure that the screw extension remains within the recommended working range.
Q3: Why does the screw thread become difficult to rotate?
Possible causes include dirt, thread deformation, or incorrect thread matching.
To maintain smooth operation, clean the thread regularly and avoid excessive impact or overloading during use.
Q4: How do you maintain a base jack?
Regular inspection and proper maintenance can extend the service life of a base jack.
Check the following items regularly:
- Threads should remain sharp and complete without flattening or metal folding.
- The nut should rotate smoothly and continuously without wobbling.
- The base plate should remain flat, and welds should be free from cracks or deformation.
- Check for rust. Clean the surface and apply anti-corrosion coating when necessary.
- Lubricate threads regularly to prevent seizure.
- Any jack showing structural instability should be removed from service and replaced immediately.
Q5: What scaffolding systems are compatible with the base jack?
A scaffolding base jack can be used with common scaffolding systems, including Ringlock, Cuplock, Frame scaffolding, and Tube & Clamp systems.
Compatibility depends on the required dimensions and connection design of the scaffolding structure.
Q6: Can you customize scaffolding base jacks?
Yes. Friend Steel Pipe can customize screw diameter, base plate size, height range, and surface treatment according to specific project requirements.
Customized solutions help customers select suitable scaffolding parts for different construction environments.
Conclusion
A reliable scaffolding jack base plays an important role in creating a safe and stable scaffolding structure. The right product selection depends on several factors, including load capacity, screw design, adjustment range, material quality, and surface protection.
Friend Steel Pipe provides adjustable screw jack solutions for contractors, distributors, and scaffolding suppliers. With flexible specifications and customized manufacturing options, the company helps customers find suitable scaffolding parts for different applications.
If you are looking for reliable scaffolding base jacks for your next project, contact Friend Steel Pipe to discuss your requirements and find a suitable solution.
